Vehicle Telematics Solution

Telematics Solution

Better For

Our telematics solution is built to support a wide range of vehicle types, including electric vehicles, delivery fleets, and industrial assets.

Product Specifications

Category VTS-202M VTS-202M2 GS-10 GS-20
𝐌𝐢𝐜𝐫𝐨𝐩𝐫𝐨𝐜𝐞𝐬𝐬𝐨𝐫
Dual Core 32-bit (80-240 MHz)
Dual Core 32-bit (80-240 MHz)
Single Core 32-bit (80-240 MHz)
Single Core 32-bit
𝐏𝐨𝐰𝐞𝐫 𝐒𝐮𝐩𝐩𝐥𝐲
9–90V DC, Reverse & Over-voltage protection
9–90V DC, Reverse & Over-voltage protection
9 to 90V DC, Reverse and Over-Voltage Protection
9 to 90V DC, Reverse and Over-Voltage Protection
𝐌𝐞𝐦𝐨𝐫𝐲
8MB (Expandable)
8MB (Expandable)
4MB
4MB
𝐈𝐧𝐭𝐞𝐫𝐧𝐚𝐥 𝐁𝐚𝐭𝐭𝐞𝐫𝐲
3.7V / 600 mAh Li-ion (Expandable)
3.7V / 600 mAh Li-ion (Expandable)
55mAh Li-ion
300mAh Li-ion
𝐂𝐨𝐧𝐧𝐞𝐜𝐭𝐢𝐯𝐢𝐭𝐲
4G LTE + 2G fallback
4G LTE + 2G fallback
2G
4G / 2G
𝐆𝐍𝐒𝐒 𝐒𝐮𝐩𝐩𝐨𝐫𝐭
GPS, GLONASS, GALILEO
GPS, GLONASS, GALILEO
GPS, GLONASS, GALILEO
GPS, GLONASS, GALILEO, BEIDOU
𝐏𝐨𝐬𝐢𝐭𝐢𝐨𝐧 𝐀𝐜𝐜𝐮𝐫𝐚𝐜𝐲
3 meters CEP @ -130 dBm (open sky)
3 meters CEP @ -130 dBm (open sky)
≤5 meters (open sky)
≤5 meters (open sky)
𝐄𝐧𝐯𝐢𝐫𝐨𝐧𝐦𝐞𝐧𝐭𝐚𝐥 𝐎𝐩𝐞𝐫𝐚𝐭𝐢𝐧𝐠 𝐓𝐞𝐦𝐩
–25°C to +85°C
–25°C to +85°C
–20°C to +80°C
–20°C to +80°C
𝐒𝐞𝐧𝐬𝐨𝐫𝐬
3-Axis Accelerometer
3-Axis Accelerometer
Motion Sensor
Motion Sensor
𝐁𝐥𝐮𝐞𝐭𝐨𝐨𝐭𝐡
Bluetooth 4.2
Bluetooth 4.2
NA
NA
𝐎𝐓𝐀 / 𝐅𝐎𝐓𝐀
Supported (via LTE or Local)
Supported (via LTE or Local)
NA
NA
𝐅𝐢𝐫𝐦𝐰𝐚𝐫𝐞/𝐂𝐨𝐧𝐟𝐢𝐠 𝐓𝐨𝐨𝐥
Local/OTA, API-based Configuration
Local/OTA, API-based Configuration
SMS
Platform/App/SMS
𝐋𝐄𝐃 𝐈𝐧𝐝𝐢𝐜𝐚𝐭𝐨𝐫𝐬
Power, Network, Internet
Power, Network, Internet
Power, Network, Internet
Power, Network, GPS
𝐈/𝐎 𝐏𝐨𝐫𝐭𝐬
1 DIN, 2 DOUT, 1 CAN
1 CAN
1 DIN, 1 DOUT
1 DIN, 1 DOUT
𝐒𝐈𝐌
Nano SIM
Nano SIM
Nano SIM
Nano SIM
𝐂𝐀𝐍 𝐁𝐮𝐬 𝐈𝐧𝐭𝐞𝐫𝐟𝐚𝐜𝐞
Standard CAN 2.0
Standard CAN 2.0
NA
NA
𝐀𝐧𝐭𝐞𝐧𝐧𝐚 𝐓𝐲𝐩𝐞
Internal GSM / GNSS / Bluetooth
Internal GSM / GNSS / Bluetooth
Built-in GSM / GPS
Built-in GSM / GPS
𝐄𝐧𝐜𝐥𝐨𝐬𝐮𝐫𝐞
Polycarbonate Plastic, IP67-Rated
Polycarbonate Plastic, IP67-Rated
Polycarbonate Plastic, IP67-Rated
ABS + Polycarbonate Plastic, IP65-Rated
𝐀𝐥𝐞𝐫𝐭𝐬 & 𝐄𝐯𝐞𝐧𝐭𝐬
Custom
Custom
Custom
Custom
𝐒𝐢𝐳𝐞
113mm × 73mm × 30mm
113mm × 73mm × 30mm
74mm(L)*35mm(W)*13mm(H)
82mm × 30.5mm × 14.8mm
𝐖𝐞𝐢𝐠𝐡𝐭
160 grams
143 grams
31 grams
38 grams
𝐌𝐨𝐮𝐧𝐭𝐢𝐧𝐠/𝐈𝐧𝐬𝐭𝐚𝐥𝐥𝐚𝐭𝐢𝐨𝐧
Fixed mounting
Fixed mounting
Fixed mounting
Fixed mounting
bussiness

Industries Powered

Thingsup’s telematics solution is designed to serve multiple domains, helping businesses gain real-time visibility, actionable insights, and remote control over their operations.

Smart Telematics Device Installed on Campus Fleet E-Bike for Real-Time Monitoring
Fleet logistics trucks equipped with Thingsup telematics system for real-time tracking and operational efficiency
Telematics device used in mining and heavy equipment for real-time tracking, safety, and equipment health monitoring

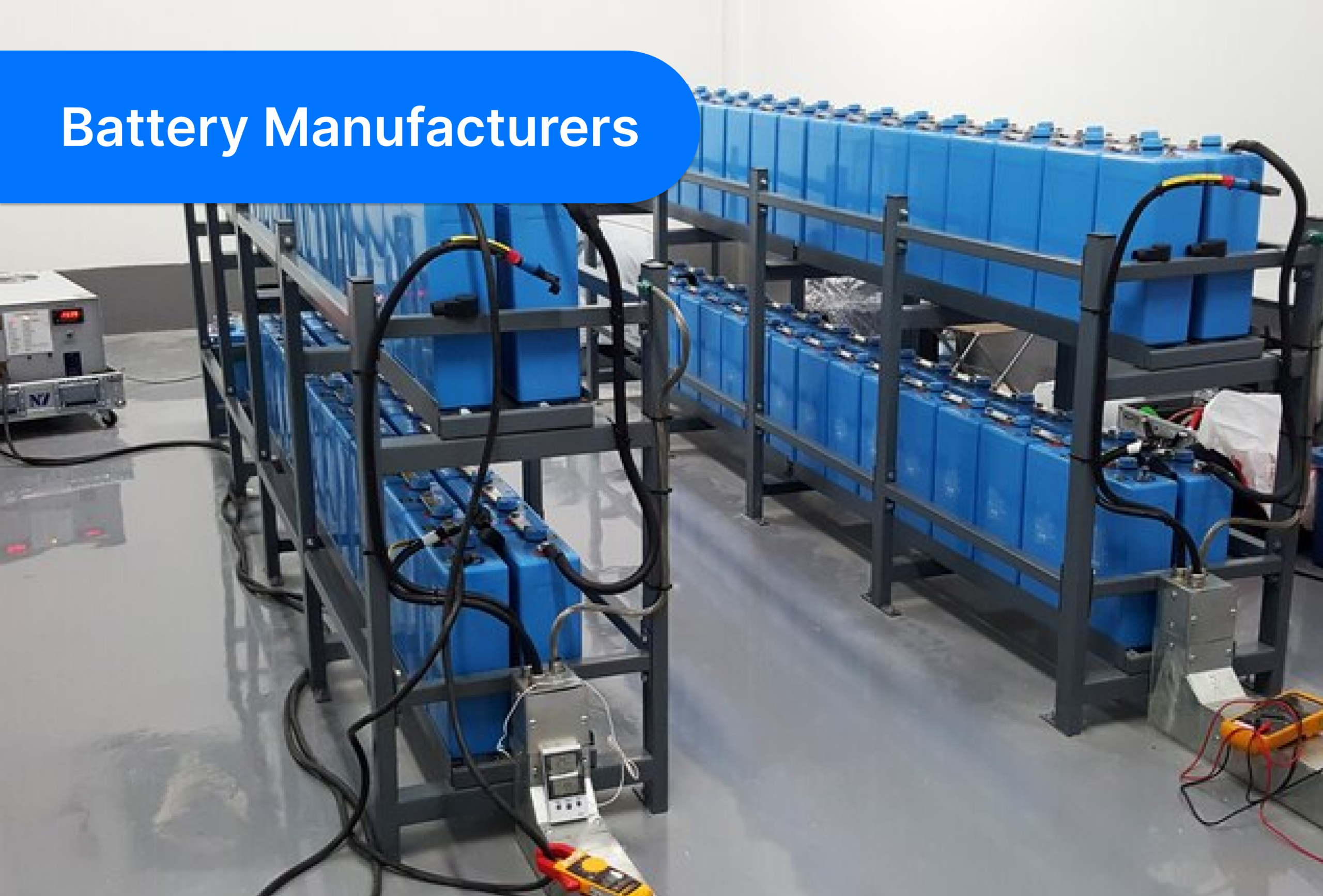

Battery manufacturing units monitored using Thingsup’s telematics for temperature, health, and operational efficiency

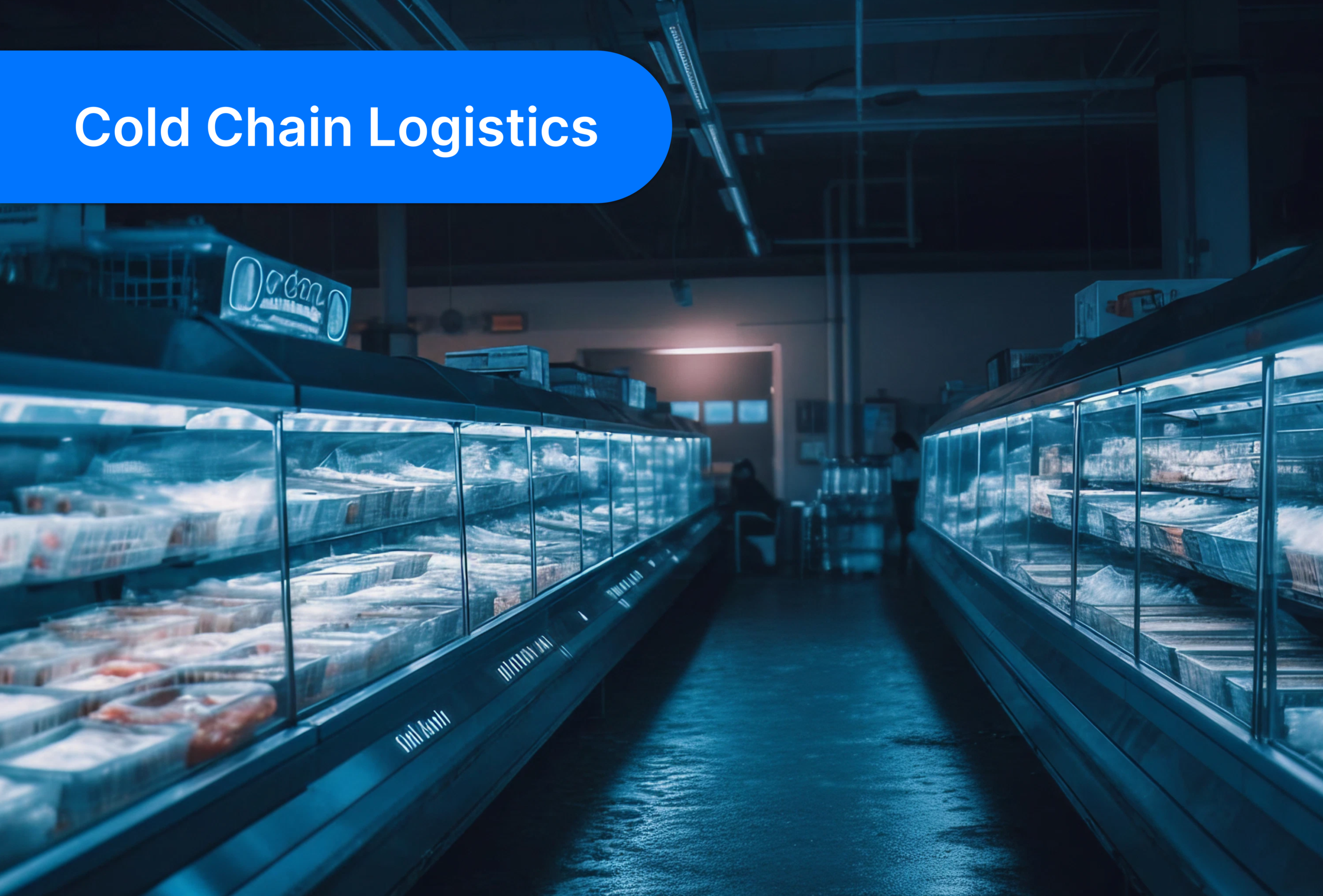

Cold chain logistics facility monitored with Thingsup telematics for real-time temperature and door status tracking
Electric vehicle manufacturing unit using Thingsup telematics for real-time vehicle diagnostics and production monitoring

Explore Our Other Solutions

Cold Supply Chain Monitoring

Monitor your cold cargo health from anywhere with Thingsup Track. Our solution allows you to remotely monitor cold storage rooms, refrigerated vehicles, retail stores, and warehouses. With real-time temperature monitoring of perishable goods, managing the integrity of your cold chain has never been easier.
Thingsup Track offers key benefits for industries like pharmaceuticals and fresh produce, ensuring your cold chain system remains efficient and reliable.

Smart Energy Monitoring

Monitor your cold cargo health from anywhere with Thingsup Track. Our solution allows you to monitor cold storage rooms, refrigerated vehicles, retail stores, and warehouses remotely. With real-time temperature monitoring of perishable goods, managing the integrity of your cold chain has never been easier.

Thingsup Track offers key benefits for industries like pharmaceuticals and fresh produce, ensuring your cold chain system remains efficient and reliable.

Energy management

Electric Vehicle Monitoring

Thingsup offers comprehensive IoT solutions for electric vehicle monitoring, fleet tracking, battery analytics and EV diagnostics.

Our platform provides detailed data insights and helps you stay connected to your EVs and chargers, ensuring optimal performance and efficiency.

Our BMS monitoring solution helps Battery and EV OEM’s save RMA cost by 25%.

Industry 4.0

Thingsup offers comprehensive IoT solutions for electric vehicle monitoring, fleet tracking, battery analytics and EV diagnostics.

Our platform provides detailed data insights and helps you stay connected to your EVs and chargers, ensuring optimal performance and efficiency.

Our BMS monitoring solution helps Battery and EV OEM’s save RMA cost by 25%.

Energy management

Fuel Tracking System

Optimize fuel usage, prevent theft, and cut operational costs with our smart Fuel Monitoring System.

Track real-time fuel levels, monitor consumption patterns, detect unusual fuel drops, and receive instant alerts.

Whether for fleets, generators, or heavy machinery, our solution provides accurate data to ensure complete transparency and improve fuel efficiency across your operations.

Asset Tracking

Complete visibility over your valuable assets with real-time tracking and monitoring.

Our Asset Tracking solution helps you monitor the live location, movement history, and usage status of equipment, shipments, and high-value goods.

Enhance operational efficiency, minimize losses, and make informed decisions with real-time access to asset performance and location insights.

Smart Digital Clusters

Enhance the rider experience with advanced, customizable Smart Digital Clusters.
We offer connected TFT and segmented display clusters designed for electric and non-electric vehicles.
Our clusters provide real-time vehicle information, diagnostics, and customizable visuals, enabling OEMs to create a modern, intuitive, and engaging dashboard experience for riders.

FAQ's

A telematics device is a smart hardware unit installed in a vehicle that helps track its location, monitor performance, and collect valuable data, such as speed, battery level, and engine health. It works by utilising GPS, cellular networks, and onboard vehicle connections, such as CAN or OBD-II, to send this data to the cloud.

With a Thingsup telematics solution, you can view real-time vehicle information on a dashboard (Thingsup Track), receive alerts, run diagnostics remotely, and even update the device software over the air (OTA). It's used in fleet tracking, EV monitoring, transportation telematics, and more.

VTS-202M and VTS-202M2 are advanced telematics devices built for electric vehicles and enterprise fleets. Both come with dual-core processors, 4G LTE + 2G fallback connectivity, CAN interface support, and OTA (Over-the-Air) update capabilities.

  • VTS-202M offers additional I/O support (1 DIN, 2 DOUT) for more complex integrations.

  • VTS-202M2 is ideal for streamlined deployments with essential features like GNSS, Bluetooth, and CAN.



GS-10 is a compact entry-level asset and vehicle tracker that runs on 2G. It has basic I/O, built-in motion sensors, and is suitable for light-duty vehicles or low-cost deployments. It does not support CAN, OTA, or Bluetooth.

GS-20 is a lightweight tracker with 4G/2G connectivity and a larger internal battery than GS-10. It adds GNSS support (including BEIDOU), enhanced configurability via platform, app, or SMS, and is ideal for budget-conscious users needing modern connectivity but without CAN or OTA support.

Yes. Both VTS-301 and VTS-302 support OTA (Over-the-Air) and FOTA (Firmware Over-the-Air) updates. Allows you to upgrade software and remotely configure your vehicle's telematics, making your deployment truly future-proof and scalable.

Thingsup telematics solution supports real-time battery health monitoring by integrating with the EV’s Battery Management System (BMS) via CAN and OBD-II interfaces. It captures vital data like SoC, SoH, cell voltage, and temperature, which is transmitted through our vehicle telematics devices using 4G LTE.

Our EV telematics system ensures continuous monitoring, even when the vehicle is off, and supports OTA firmware updates for remote diagnostics. With Thingsup telematics, electric vehicle OEMs gain complete visibility into battery performance and predictive maintenance.

Through CAN and OBD-II interfaces, Thingsup’s telematics solution extracts detailed data from your EV’s Battery Management System (BMS). Enables continuous battery health monitoring, voltage tracking, and preventive maintenance alerts, which are essential for electric vehicle OEMs and fleet operators.

Yes, our telematics devices support multi-band 4G/3G/2G connectivity for global regions including EU, NA, LA, MEA, and APAC. Whether you're tracking delivery fleets in Europe or managing EVs in India, our globally adaptable vehicle tracking system ensures reliable performance.

Thingsup's telematics solution supports various industries with real-time tracking, remote diagnostics, and data-driven decisions. Here's how:

🚗 EV Manufacturers

Our EV telematics system supports CAN-based battery health monitoring, OTA updates, and diagnostics ideal for electric two-wheelers, cars, and OEMs.

❄️ Cold Chain Logistics

Combine the GS10 tracking device with temperature and door sensors to maintain cold chain compliance and reduce spoilage.

🏗 Industrial Equipment

Track heavy machinery and remote assets using our industrial telematics platform with motion alerts and fuel monitoring.

🚛 Transport & Fleets

Optimize routes and monitor performance with our commercial vehicle telematics and fleet tracking system.

🚐 Rentals & Shared Mobility

Ensure visibility, driver safety, and analytics with our car fleet telematics platform, featuring API access.
